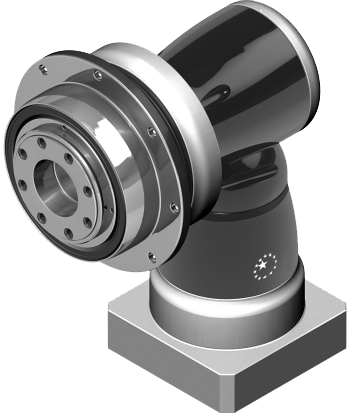

The AH Series is a high precision rotary flange style planetary gearbox with less than 1 arc minute backlash. Case Hardened and ground gearing provide high accuracy and high wear resistance for the gear train. Compact structure provides high torsional rigidity, taper roller bearing support provides high axial and moment load capacity. NEW larger sizes available – AH 285 / AH355 / AH450
OVERVIEW
Output torque
T2N : 30 Nm – 10750 Nm
Ratios:

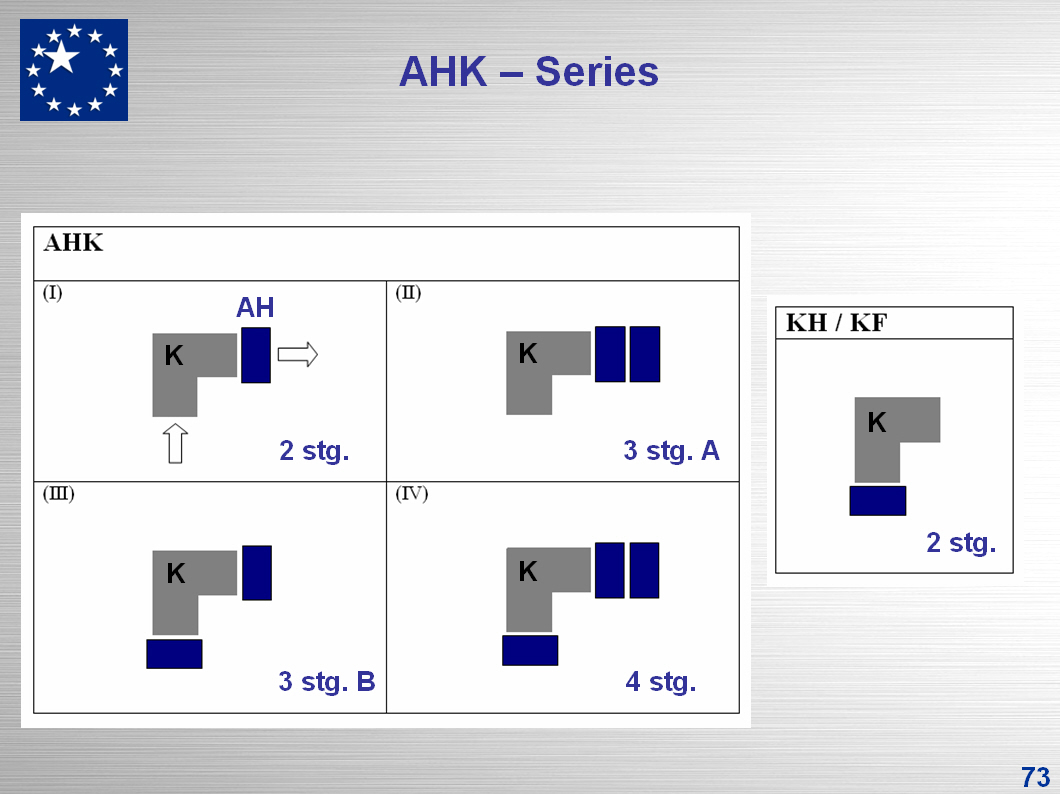

2-stage : 4 / 5 / 7 / 8 / 10
3-stage : 21 / 31 / 46 / 61 / 91
Low backlash
2-stage : ≤2arcmin (AHKC064≤3)
3-stage : ≤2arcmin
High efficiency
2-stage : ≧ 95%
3-stage : ≧ 93%
Easy mount
Low noise
SIZE
AHKC064 / AHKC090 / AHKC110 / AHKC140 / AHKC200 / AHKC255 / AHKC285 / AHKC355 / AHKC450
