The Apex KF series has a 90° input via precision ground hypoid gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by optimized Hypoid Right Angle Gearing. High Axial and Radial Loads provided by High Precision Taper Roller Bearings. Available with Smooth Output Shaft (-S1), Keyed Output Shaft (-S2), DIN 5480 Output Spline (-S3) and Compression Clamp Hollow Shaft (-S4).

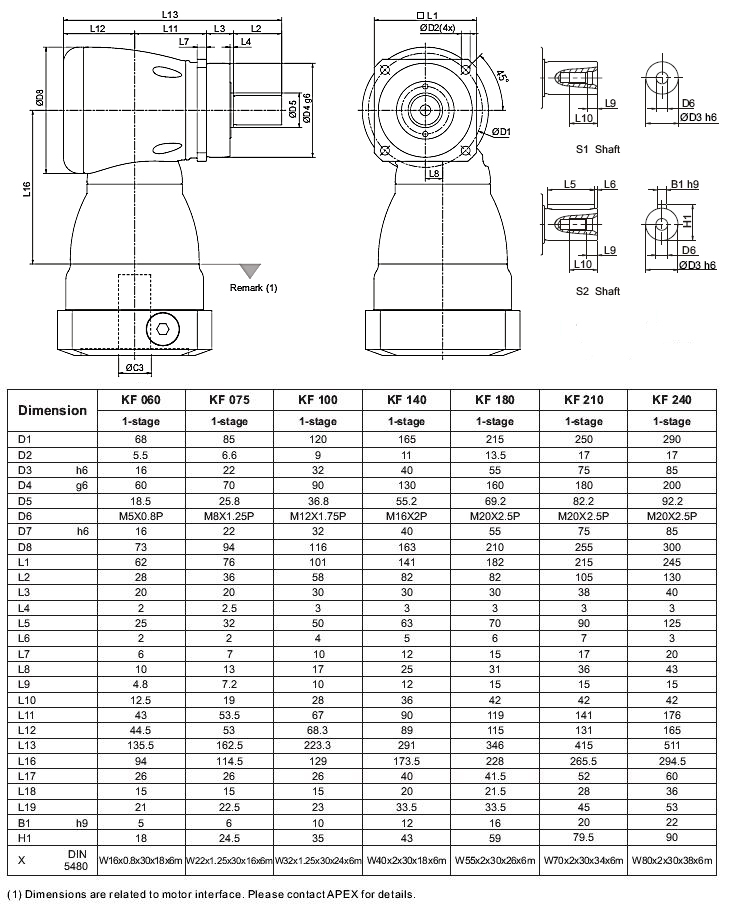

S1：Smooth Output Shaft
S2：With Key Way

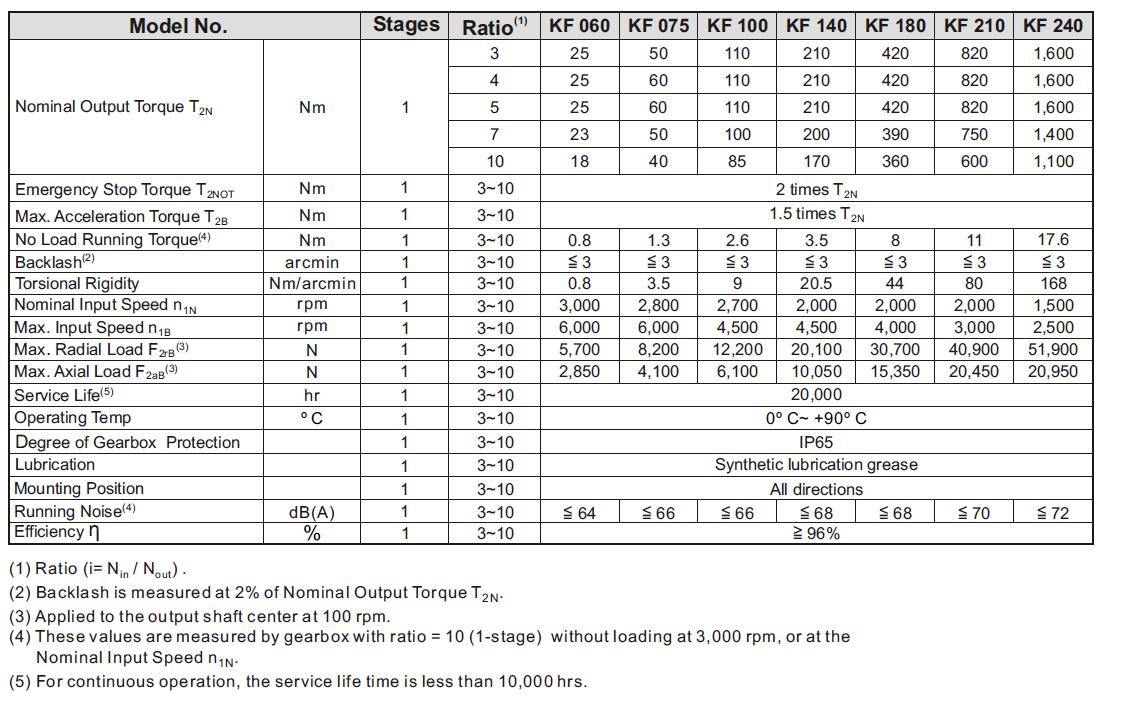

OVERVIEW
Output torque
T2N :18 Nm – 1600 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
Low backlash
1-stage :≦ 3 arcmin
High efficiency
1-stage :≧ 96
Easy mount
Low noise
Compact structure
SIZE
KF060 / KF075 / KF100 / KF140 / KF180 / KF210 /KF240
Hypoid Gearbox Series
|
