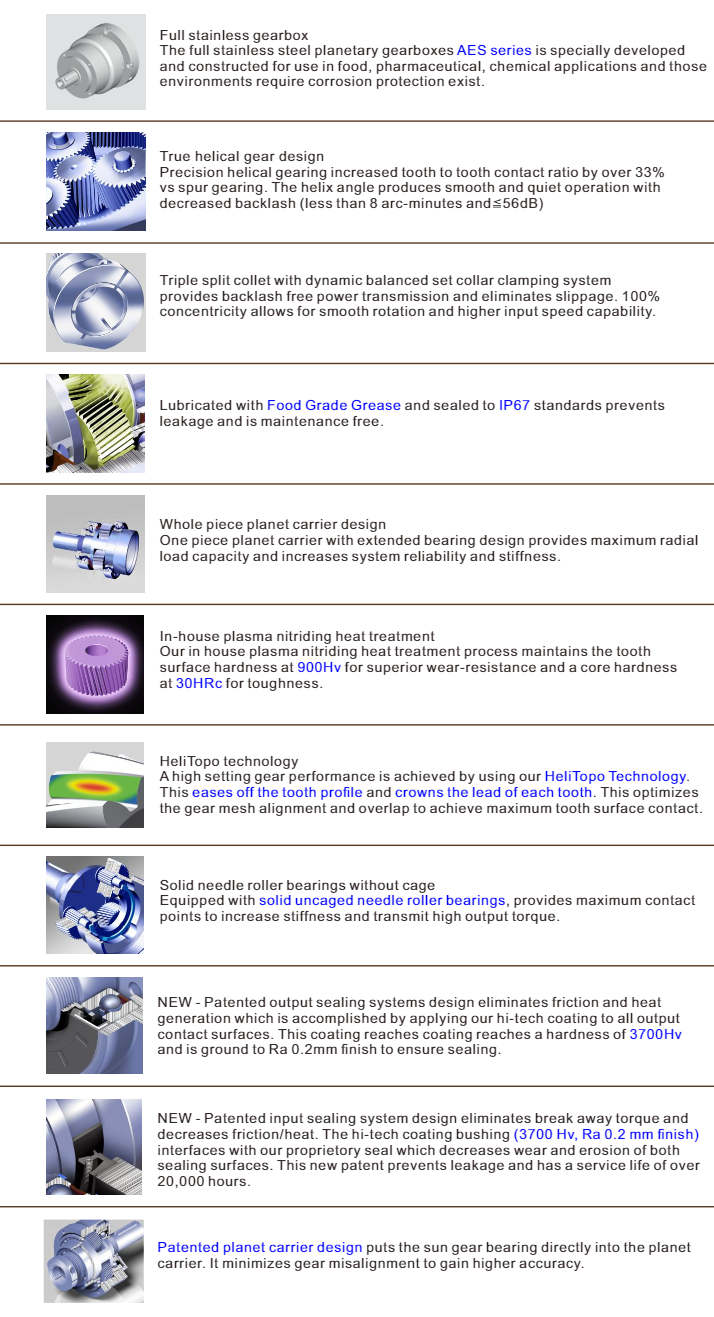

Built for washdown environments, food handling, above food line, beverage – dairy, soft drink, beer, pharmaceutical , corrosive environments. The AE-SS series features high torque capacity helical gearing, smooth, quiet operation, low backlash, high radial load capacity and continuous/high cycle rate capability. The AES/AERS series also includes Apex’s patented input bearing technology that perfectly centers the pinion, or sun gear, directly in the center of the planet gears. This ensures equal load sharing on each of the planet gears, driving better accuracy, smoother quieter operation, lower torque ripple and lower transmission error, while increasing longevity and decreasing wear.

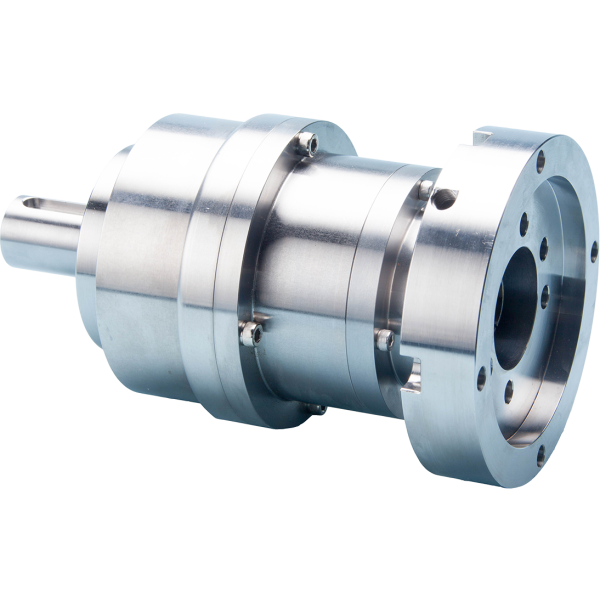

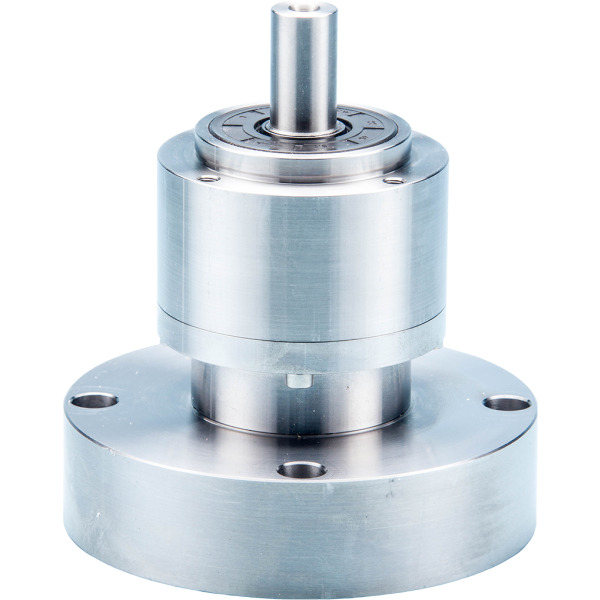

Full-Stainless Design
Standard with IP67 and Food-Grade Grease

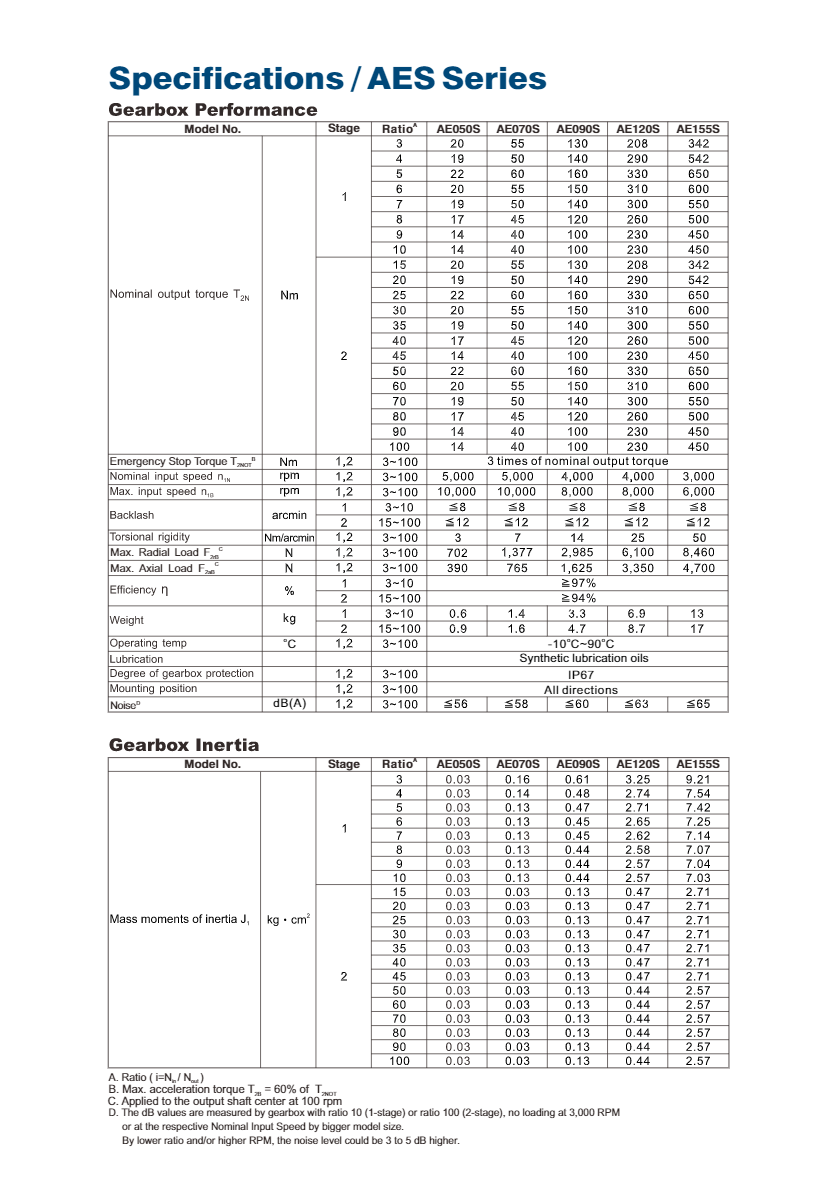

OVERVIEW
Output torque
T2N : 14 Nm – 2000 Nm
Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage :15 / 20 / 25 / 30 / 35 / 40 /
45 / 50 / 60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤8 arcmin
2-stage : ≤12 arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure

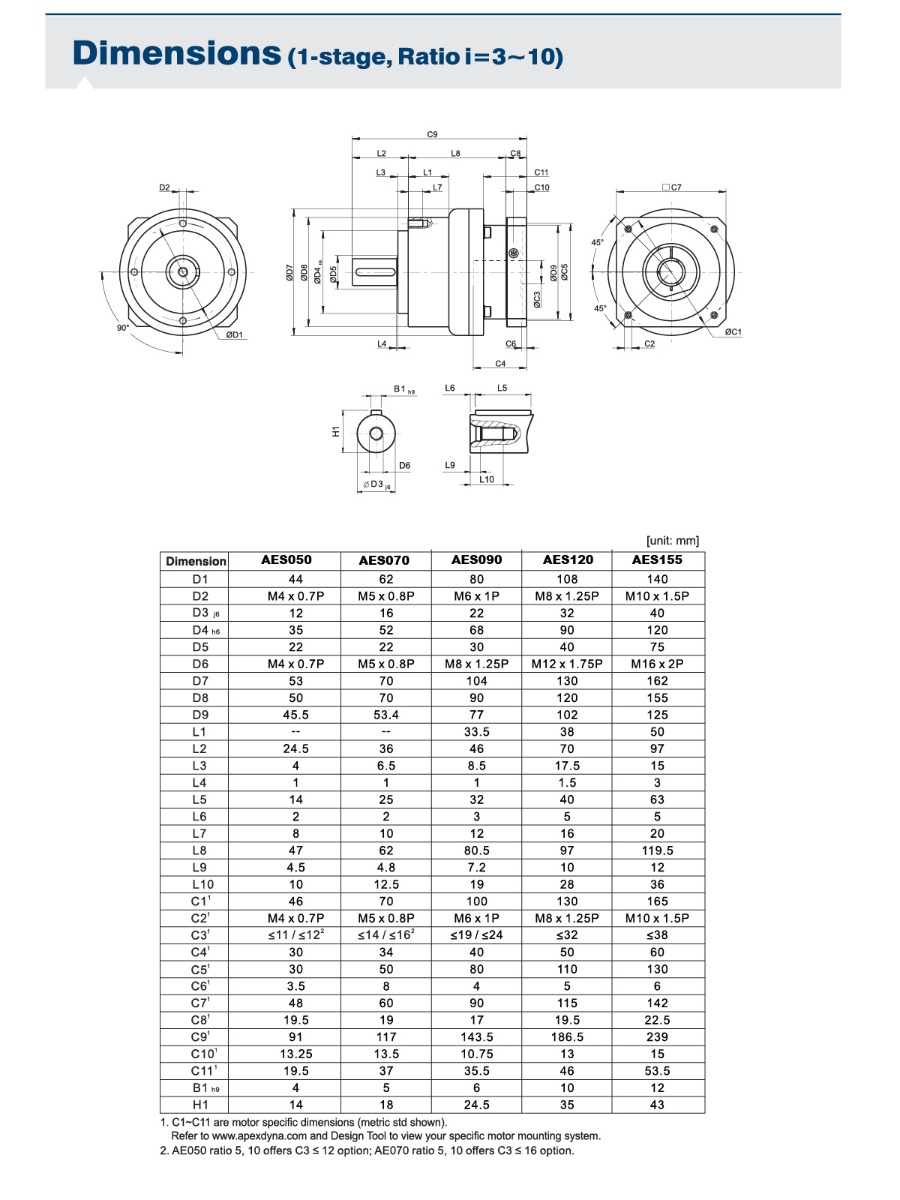

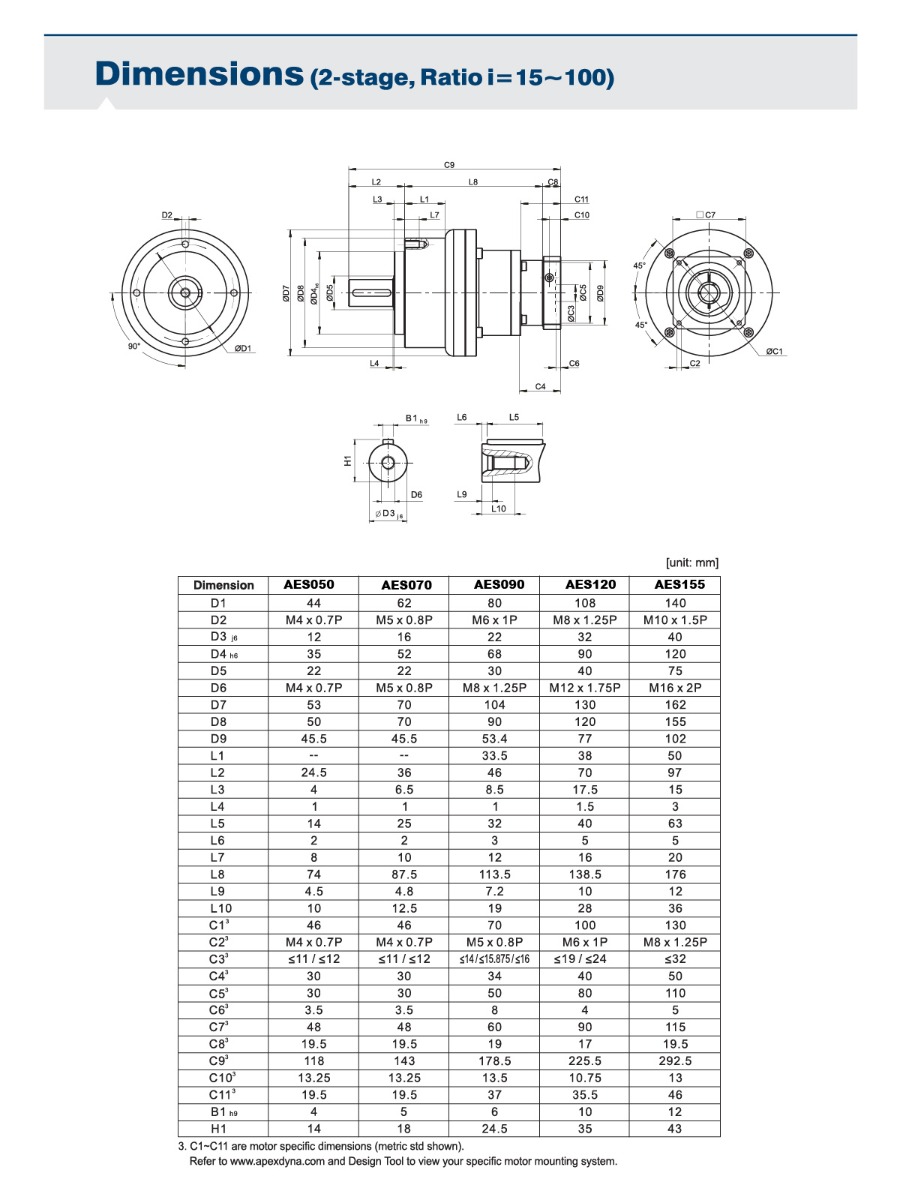

SIZE
AE050S / AE070S / AE090S / AE120S / AE155S
