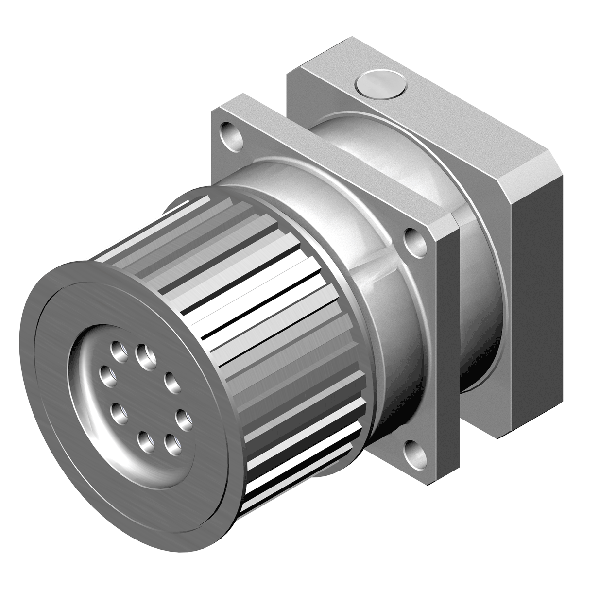

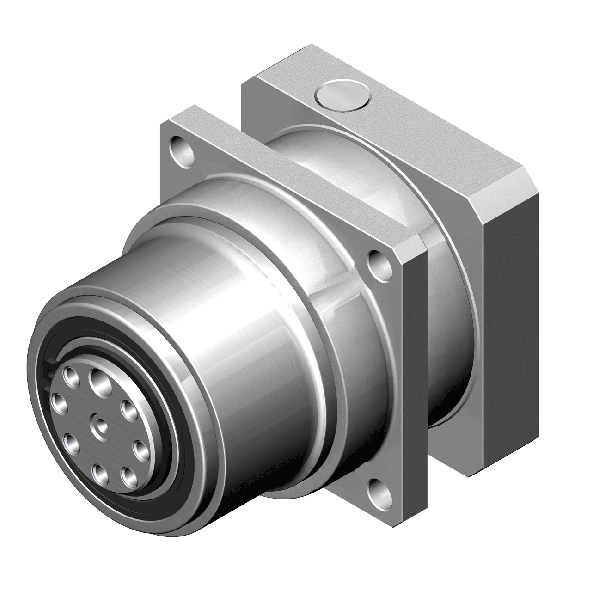

The PL series is an economy rotary flange pulley drive output precision planetary gearbox. Standard profile pulleys are available for all sizes. Accuracy is down to less than 6 arc minutes. The PL series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.

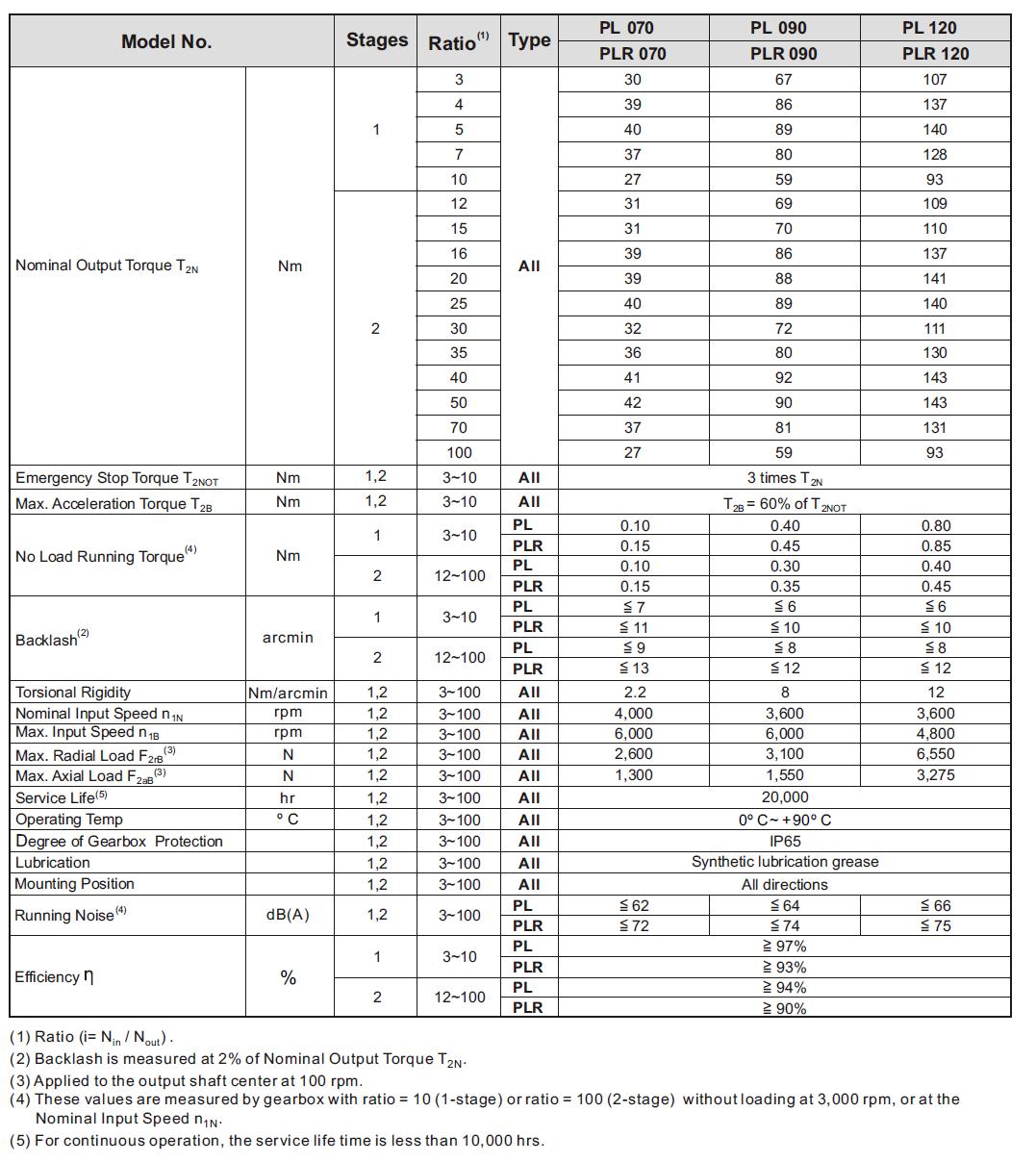

OVERVIEW
Output torque
T2N :27 Nm – 143 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :12 / 15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
Low backlash
1-stage :≤ 6 ~ 7 arcmin
2-stage :≤ 8 ~ 9 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
Easy mount
Low noise
Compact structure

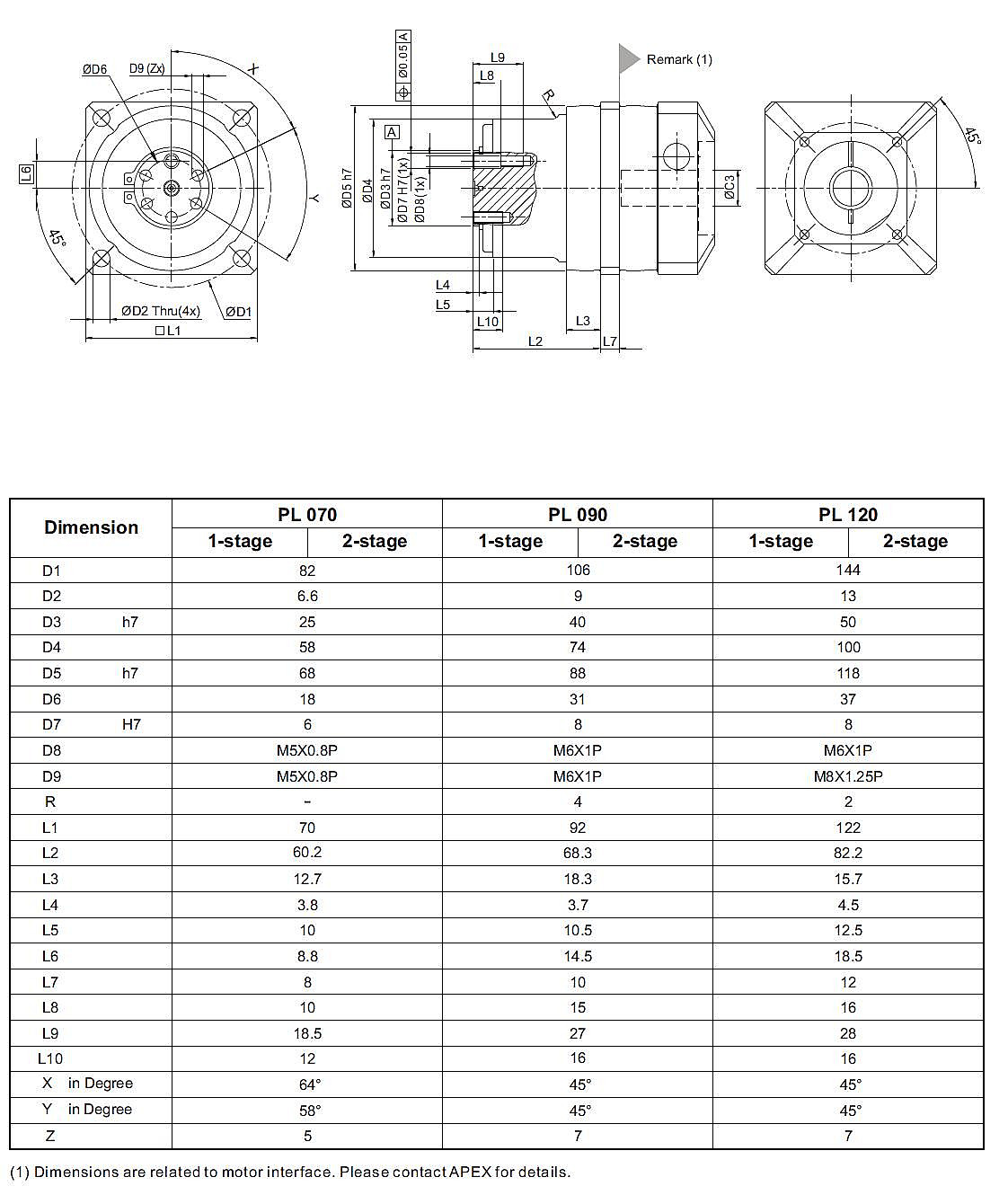

SIZE
PL 070 / PL 090 / PL 120
Planetary Gearbox
New Generation PⅡ – Series
PLⅡ – Series
– Economic
– High efficiency
– Low noise
– Reduced backlash
– Optimized inertia moment
– Limited temperature rise
– Long service life
– Flexible mounting diameters
– Minimized size and weight
