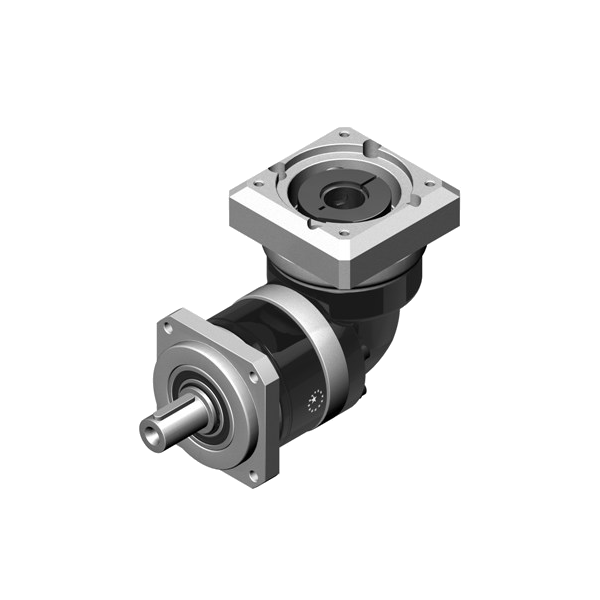

The Apex PAIIR series is a high precision economy right angle planetary gearhead. The PIIR series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PAIIR features an industry standard metric square through holed bolt circle flange output, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies. Low profile planetary gearing and precision ground spiral bevel right angle gears provide smooth, quiet operation and accuracy.
OVERVIEW

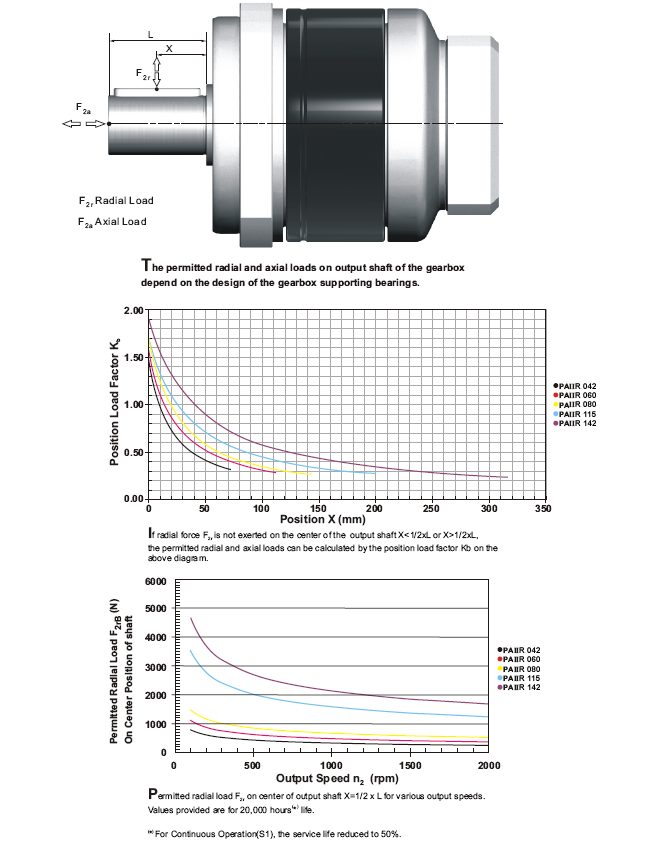

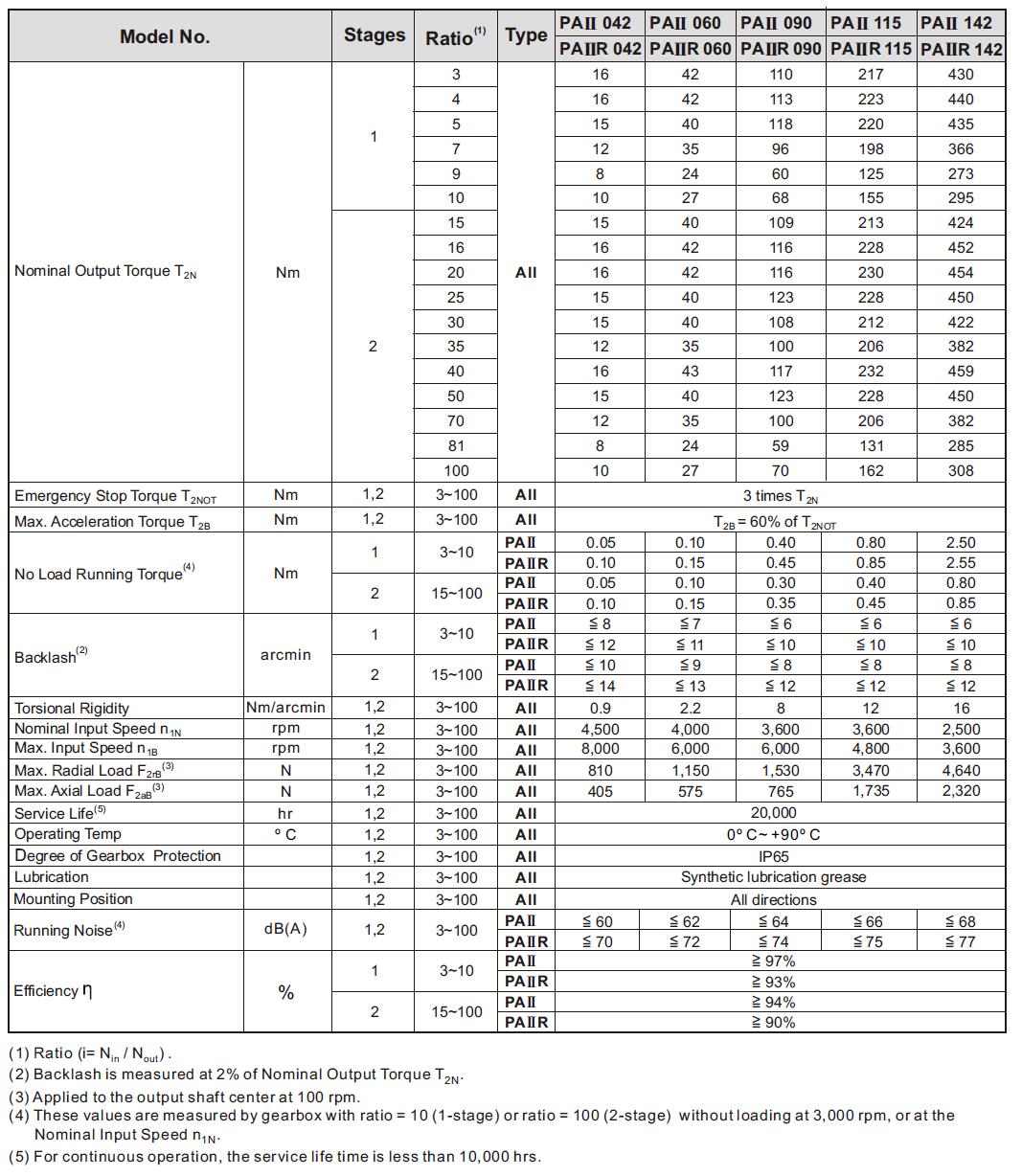

Output torque
T2N :8 Nm – 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 9 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage :≤ 10 ~ 12 arcmin
2-stage :≤ 12 ~ 14 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
Easy mount
Low noise
Compact structure

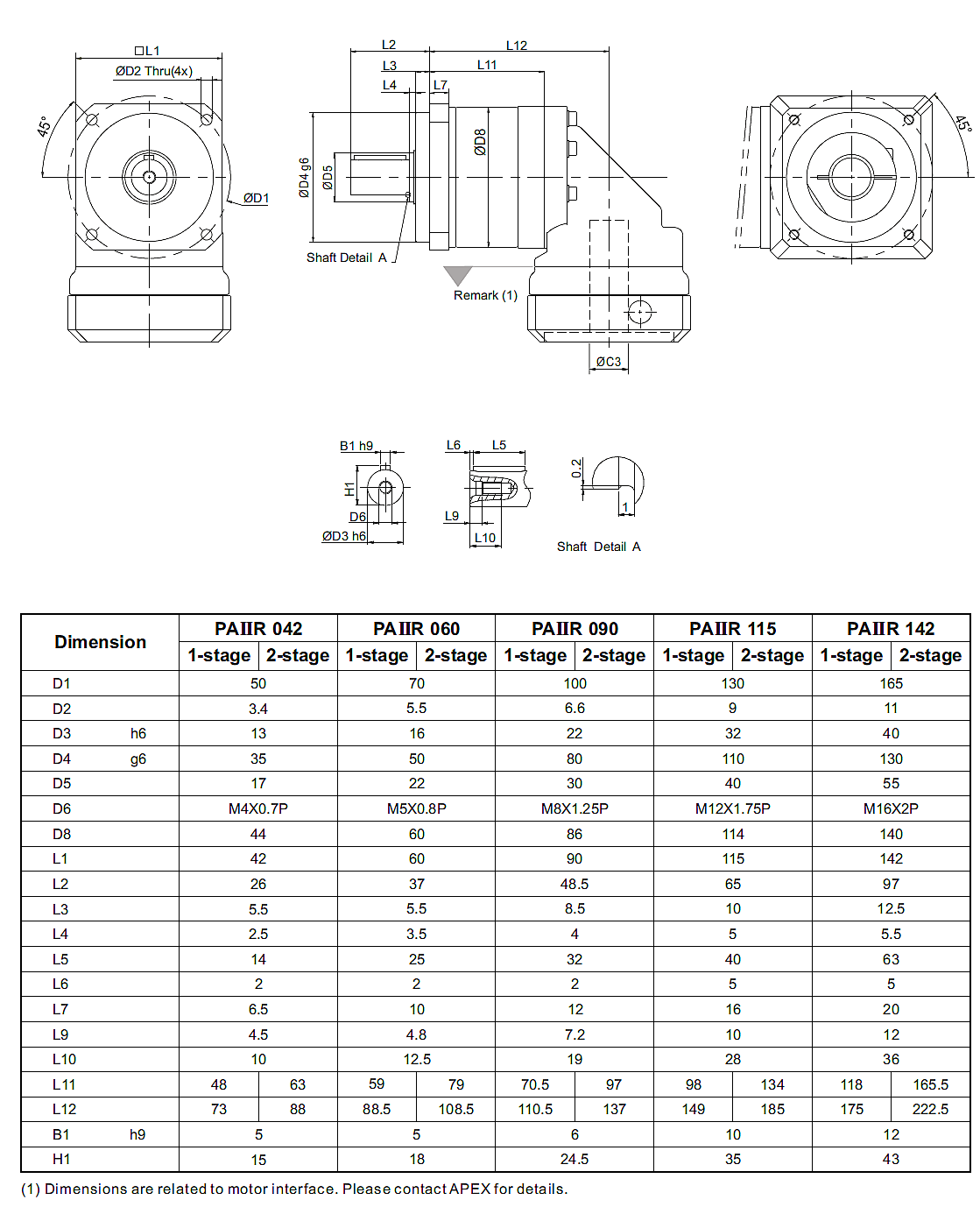

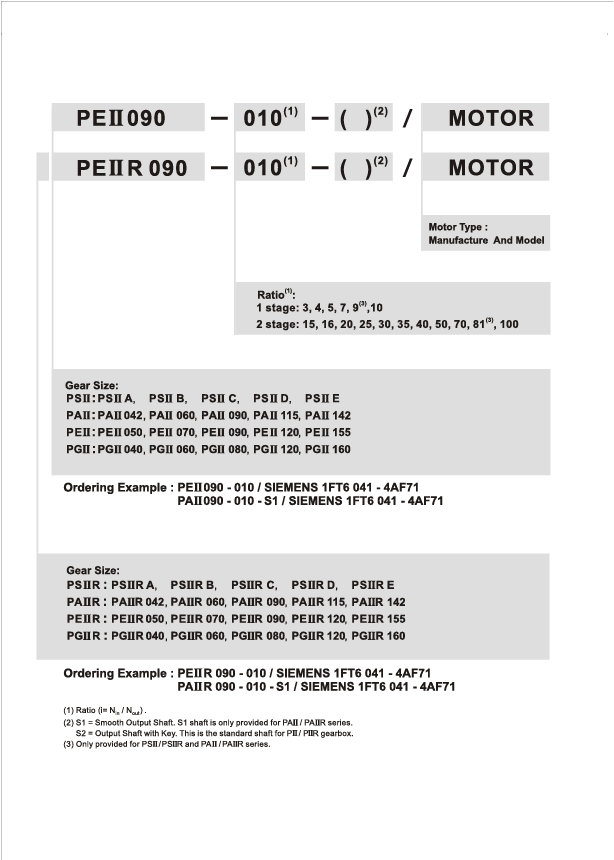

SIZE
PAIIR 042 / PAIIR 060 /
PAIIR 090 / PAIIR 115 /
PAIIR 142
Planetary Gearbox
New Generation PⅡ – Series
PAⅡ – Series
– Economic
– High efficiency
– Low noise
– Reduced backlash
– Optimized inertia moment
– Limited temperature rise
– Long service life
– Flexible mounting diameters
– Minimized size and weight
