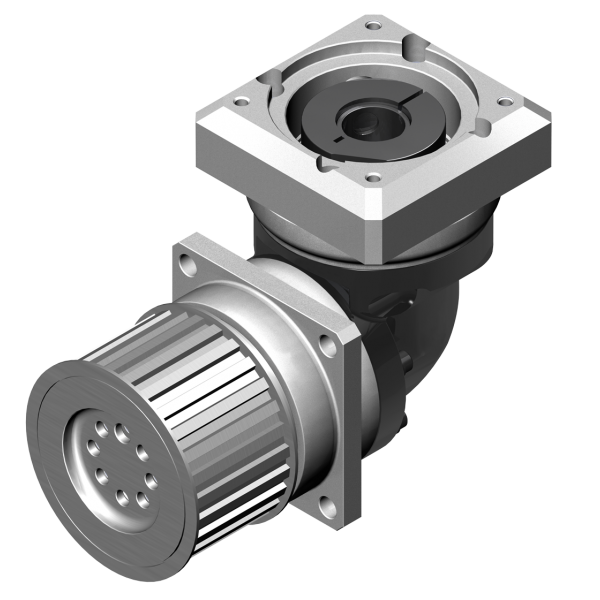

The PLR series is an economy rotary flange pulley drive output precision planetary gearbox. Standard profile pulleys are available for all sizes. Accuracy is down to less than 10arc minutes. The PL series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.
OVERVIEW
Output torque
T2N :27 Nm – 143 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :12 / 15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
Low backlash
1-stage :≤ 10 ~ 11 arcmin
2-stage :≤ 12 ~ 13 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
Easy mount
Low noise
Compact structure

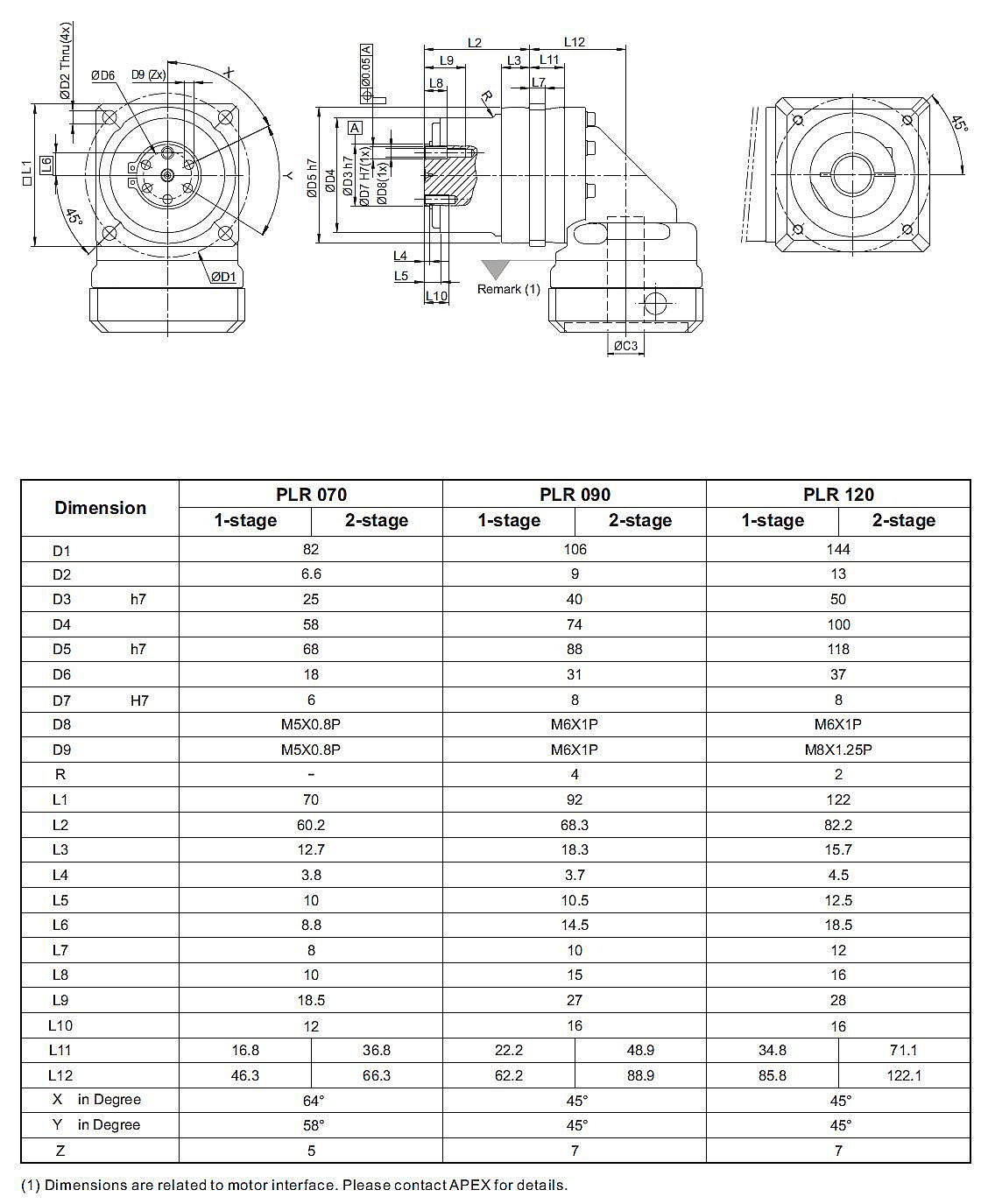

SIZE
PLR 070 / PLR 090 / PLR 120
Planetary Gearbox
New Generation PⅡ – Series
PLⅡ – Series
– Economic
– High efficiency
– Low noise
– Reduced backlash
– Optimized inertia moment
– Limited temperature rise
– Long service life
– Flexible mounting diameters
– Minimized size and weight
