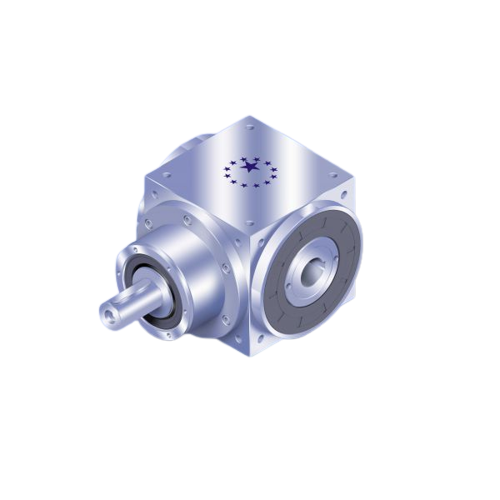

The Apex AT-H series is a right angle spiral bevel gearbox with hollow keyed output and input shaft configuration. High radial load capacity and high precision make the AT-H series suitable for servo applications as well as power transmission solutions.
NEW! – Now available in Carbon Steel as ATB version!
OVERVIEW
Output torque
T2N :12 Nm – 3,200 Nm
Ratios:
1-stage :1 / 1.5 / 2 / 3 / 4 / 5
Low backlash
1-stage :≤6 arcmin
High efficiency
1-stage : ≧ 98%
Easy mount
Low noise
Compact structure
SIZE

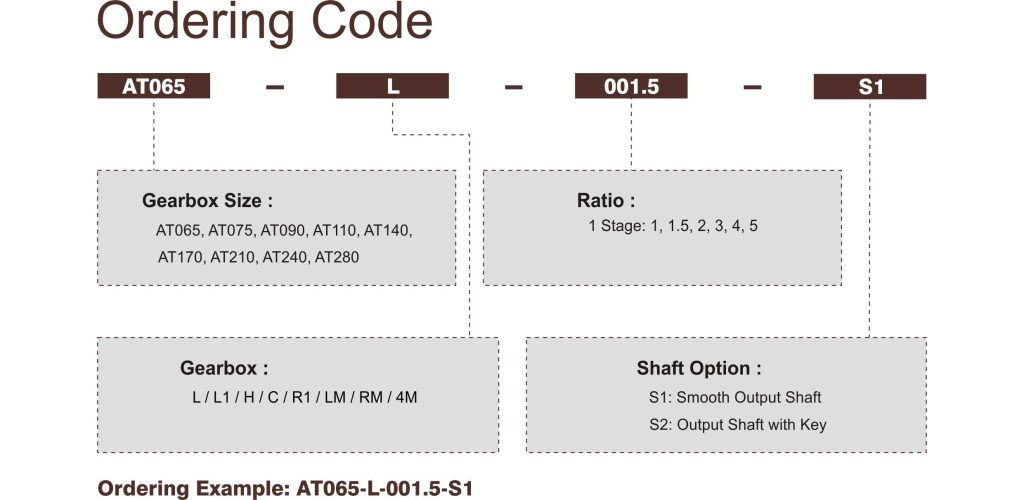

AT065H / AT075H / AT090H / AT110H / AT140H / AT170H / AT210H / AT240H / AT280H
