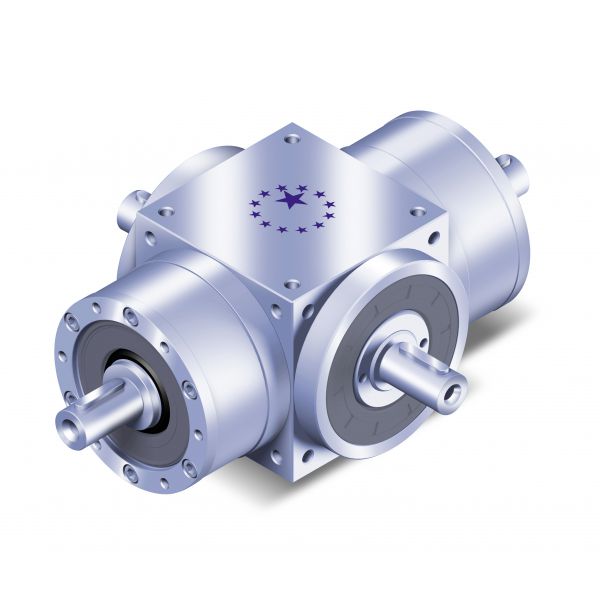

The Apex AT-4M series is a 1:1 ratio spiral bevel servo grade gearbox constructed with four drive shafts and three spiral bevel gears. Suitable for line shaft applications, single input wit three driven output shafts and dual shaft applcitions that require a manual drive option.
NEW! – Now available in Carbon Steel as ATB version!

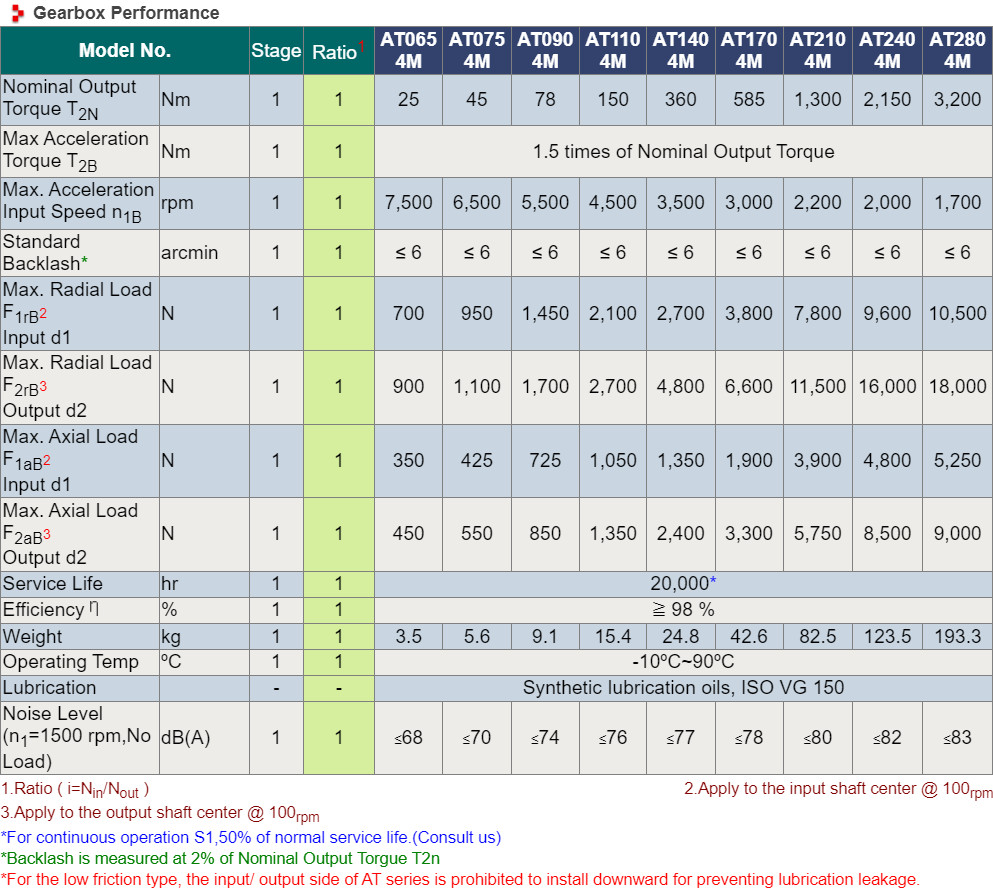

OVERVIEW
Output torque
T2N :12 Nm – 3,200 Nm
Ratios:
1-stage :1
Low backlash
1-stage :≤6 arcmin
High efficiency
1-stage : ≧ 98%
Easy mount
Low noise
Compact structure
SIZE
AT065 4M / AT075 4M / AT090 4M / AT110 4M / AT140 4M / AT170 4M / AT210 4M / AT240 4M / AT280 4M
