The Apex PEIIR series is a high precision economy right angle planetary gearhead. The PIIR series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PEIIR features an industry standard metric tapped face output, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies. Low profile planetary gearing and precision ground spiral bevel right angle gears provide smooth, quiet operation and accuracy.

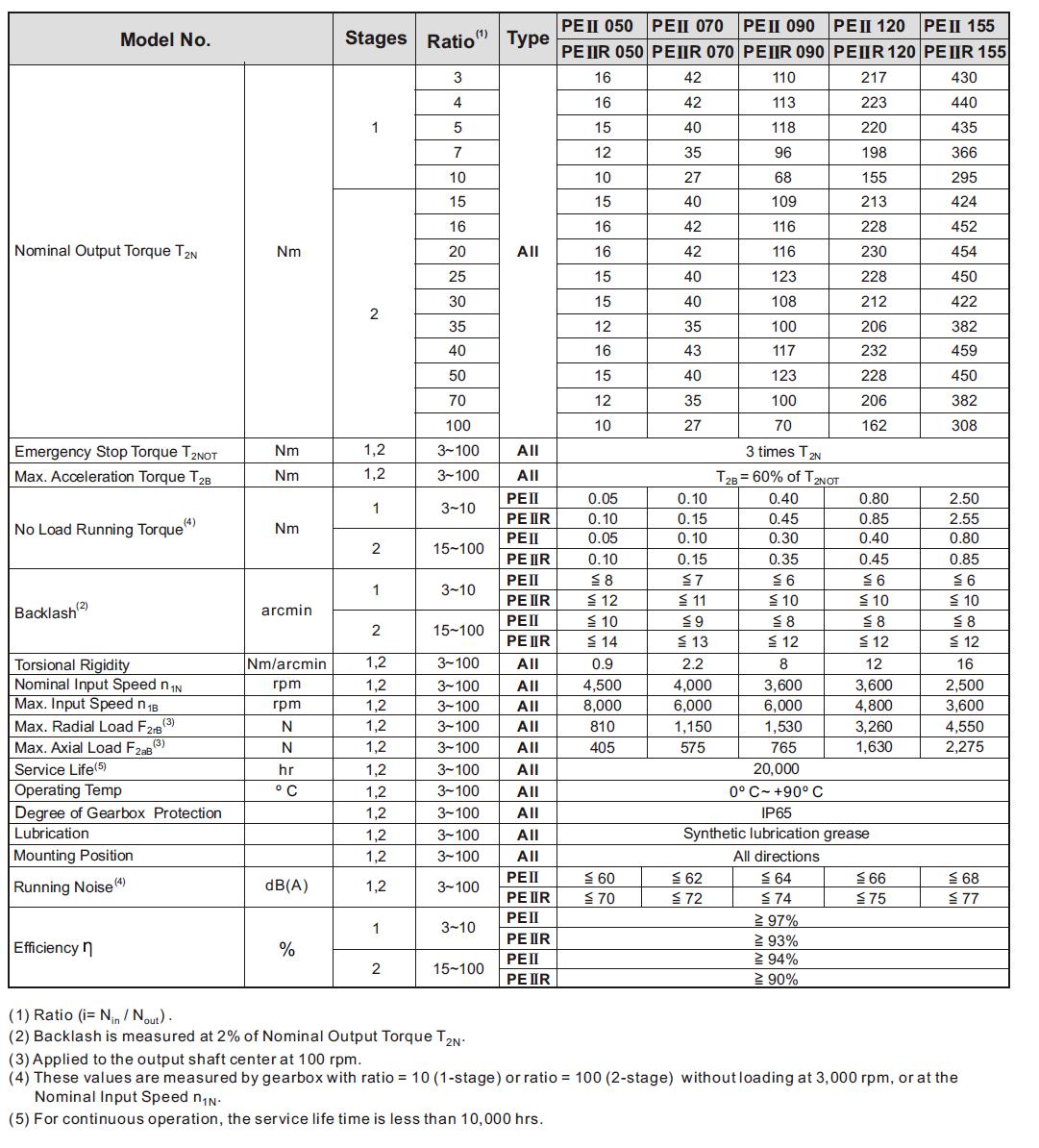

OVERVIEW
Output torque
T2N: 8 Nm – 459 Nm
Ratios:
1-stage: 3 / 4 / 5 / 7 / 9 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage :≤ 10 ~ 12 arcmin
2-stage :≤ 12 ~ 14 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
Easy mount
Low noise
Compact structure

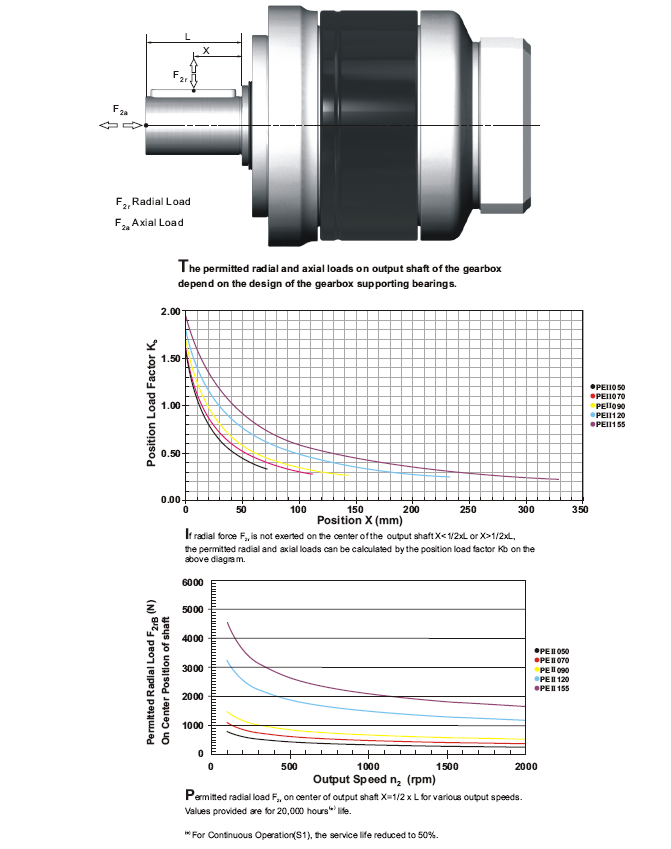

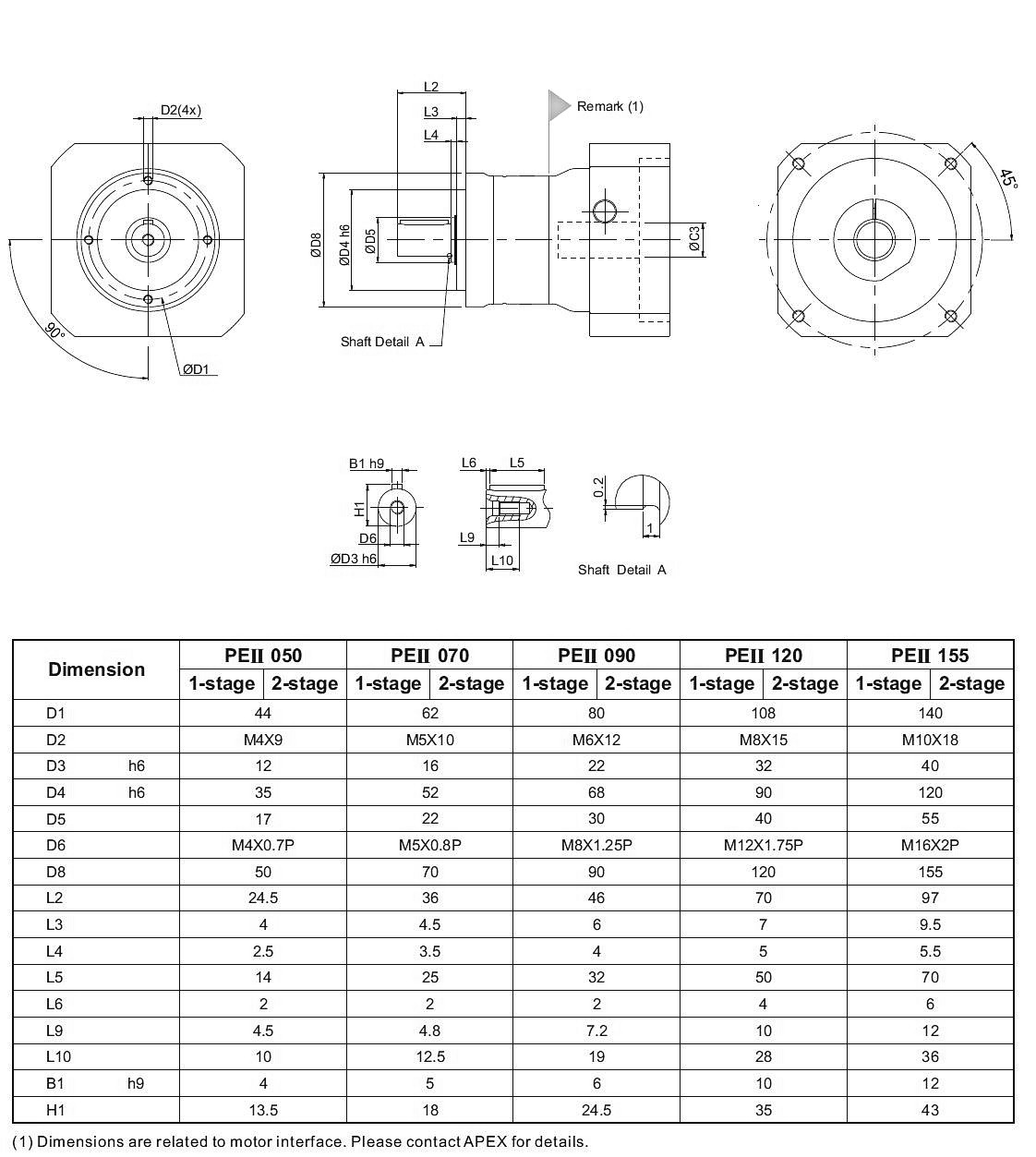

SIZE
PEIIR 050 / PEIIR 070 /
PEIIR 090 / PEIIR 120 /
PEIIR 155
