AD/ADS-SERIES HIGH PRECISION PLANETARY GEARBOXES

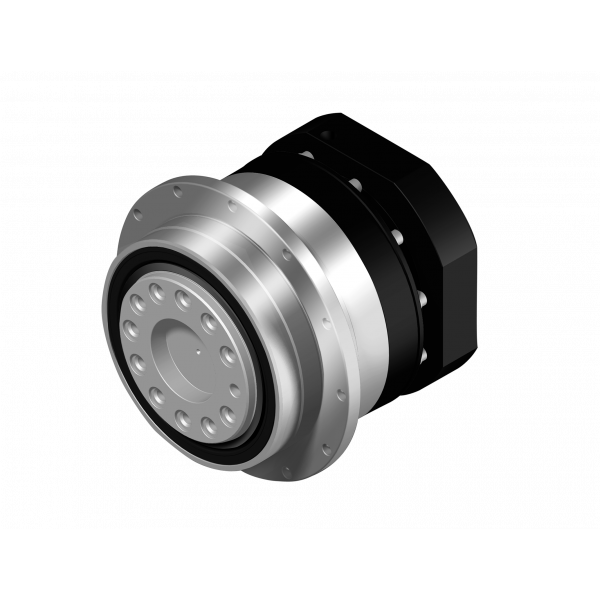

The Apex AD series High Torque, Low backlash COMPACT Helical, One Piece Plantary Cage Design Provides the Stiffest and Most Accurate Rotating Flange Design on the Market Today. Superior Accuracy of less than 1 arc-min and as SHORT as 70mm (Flange to Flange), The Apex AD fits into the smallest spaces.

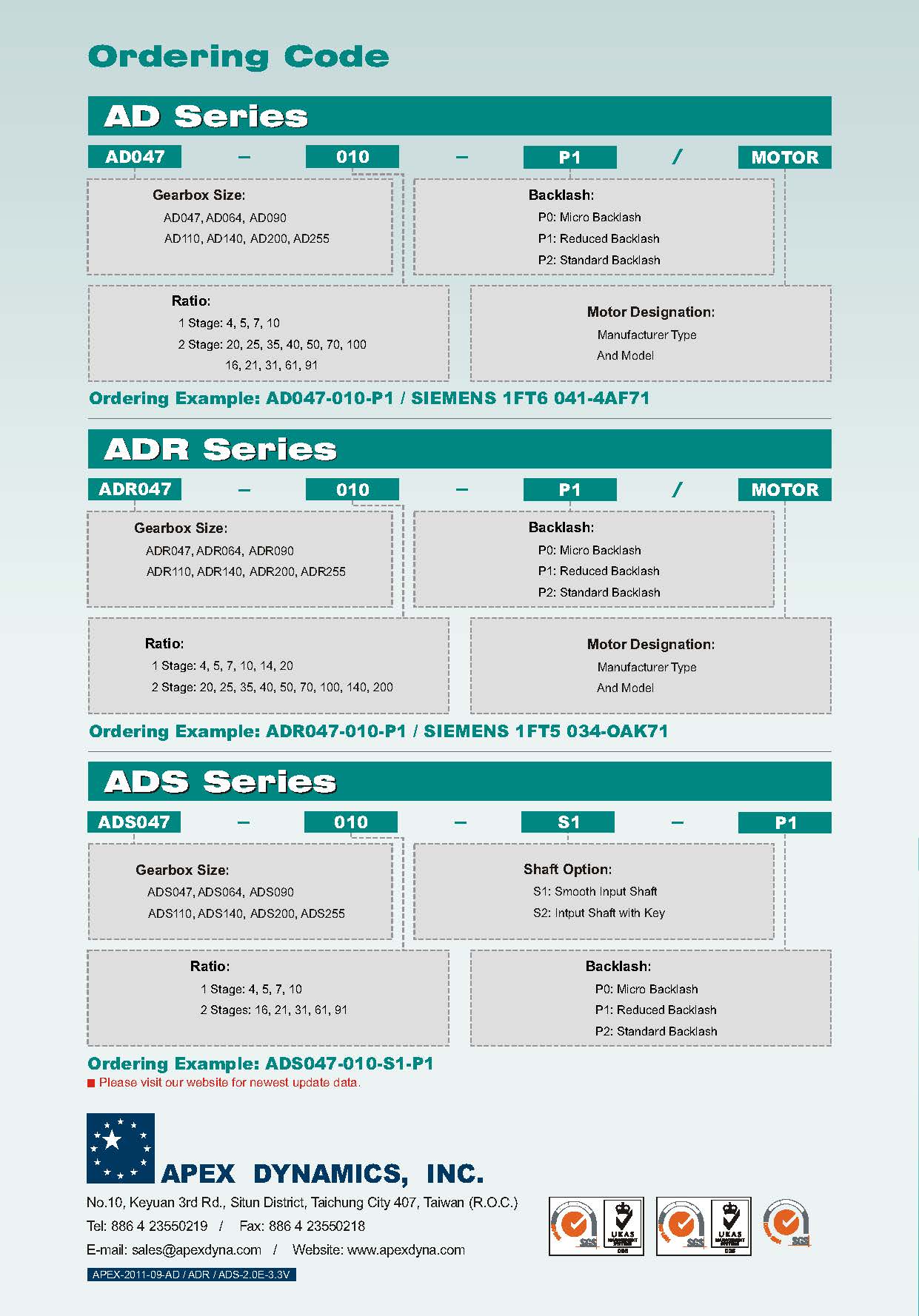

The model ADS is the standard AD equipped with an out-stretching shaft on the input side as option.

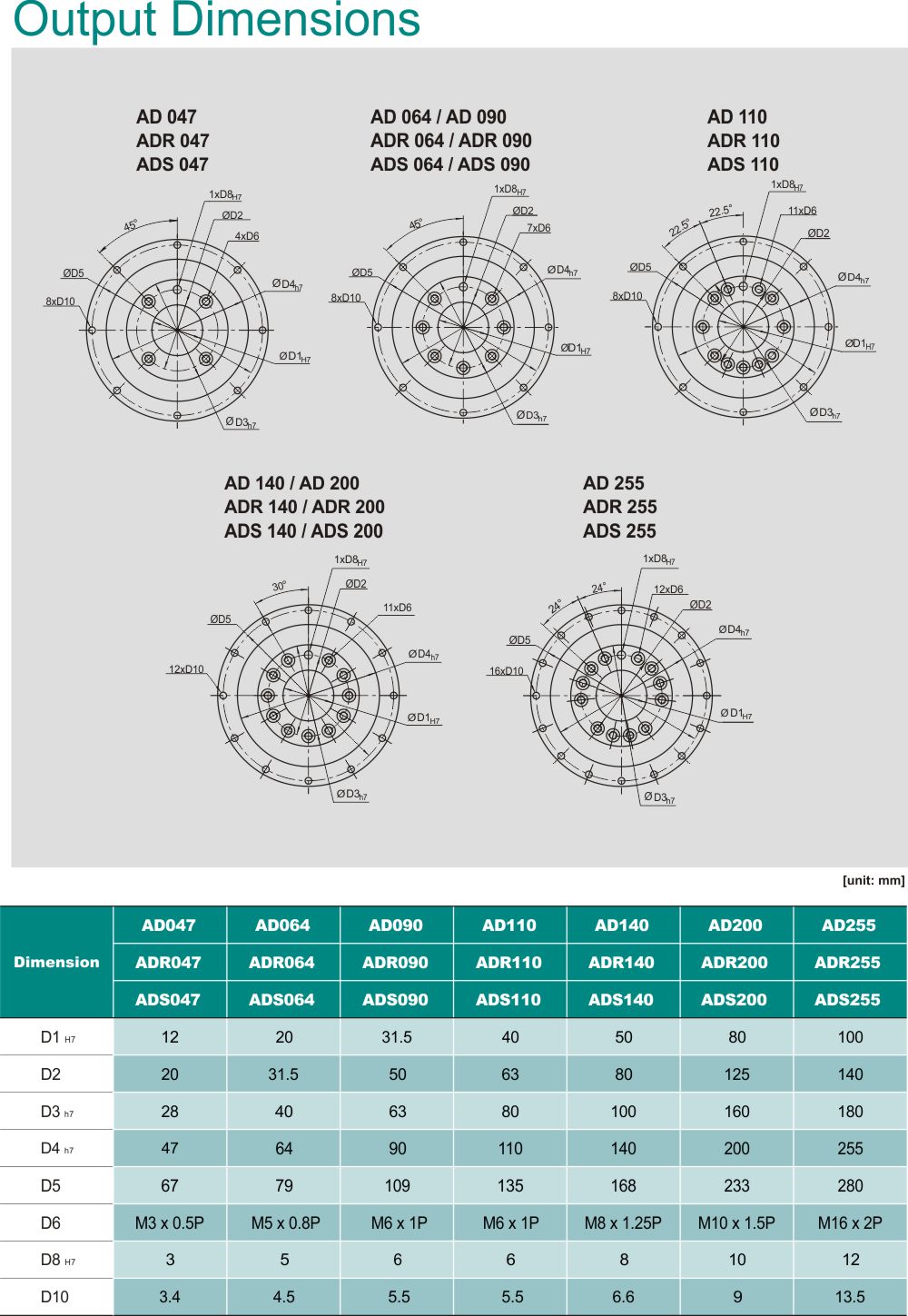

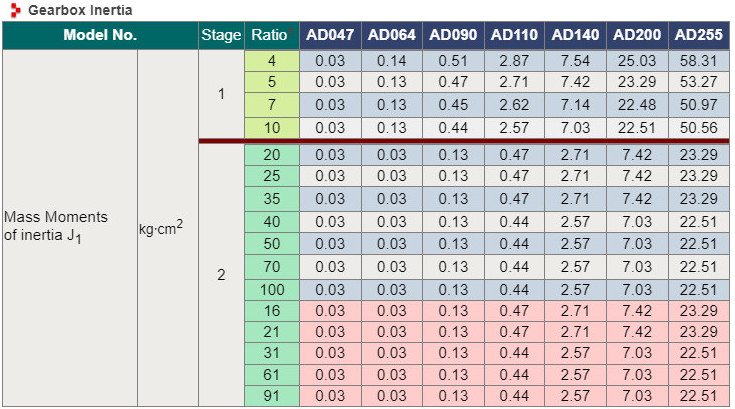

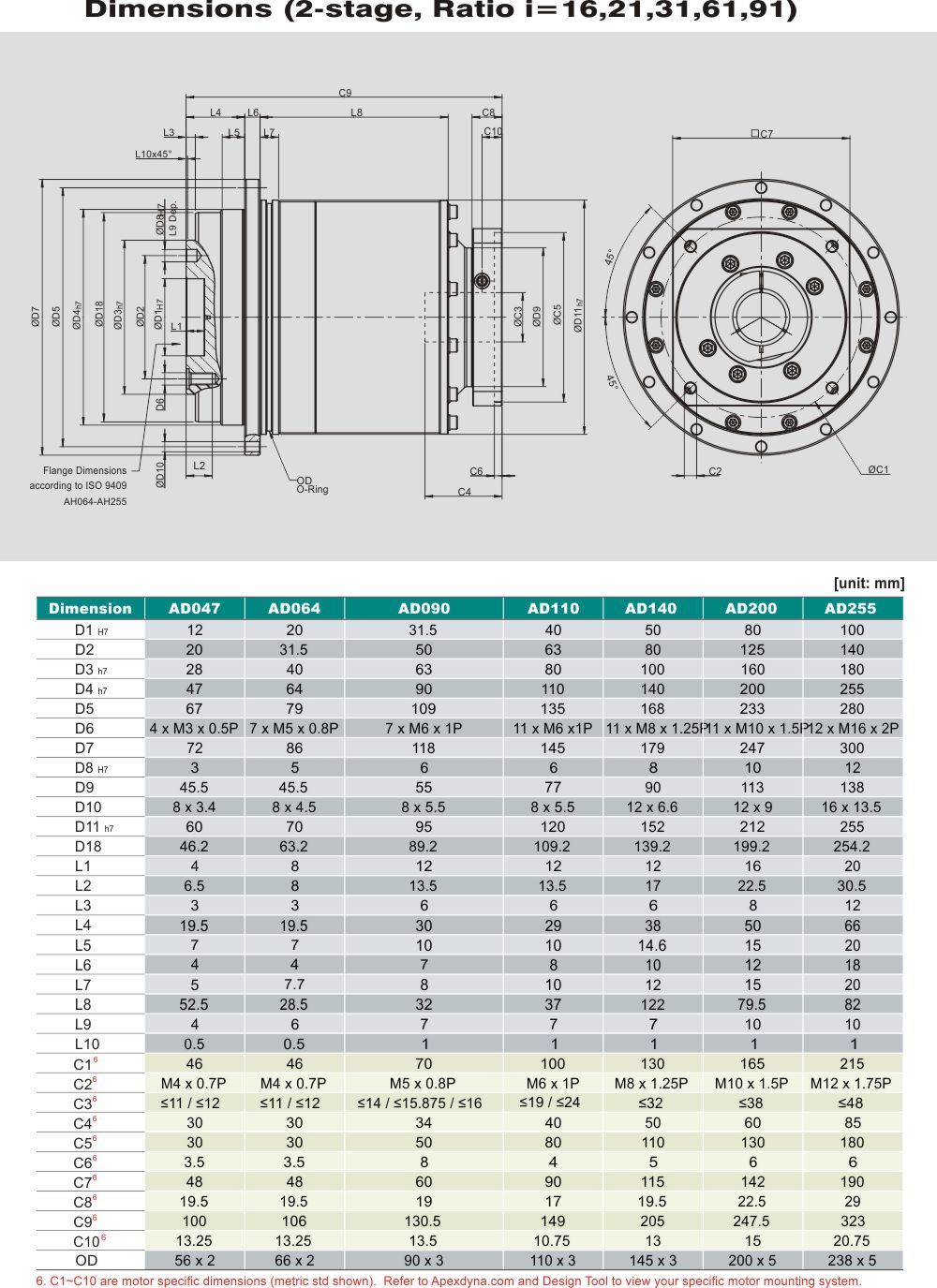

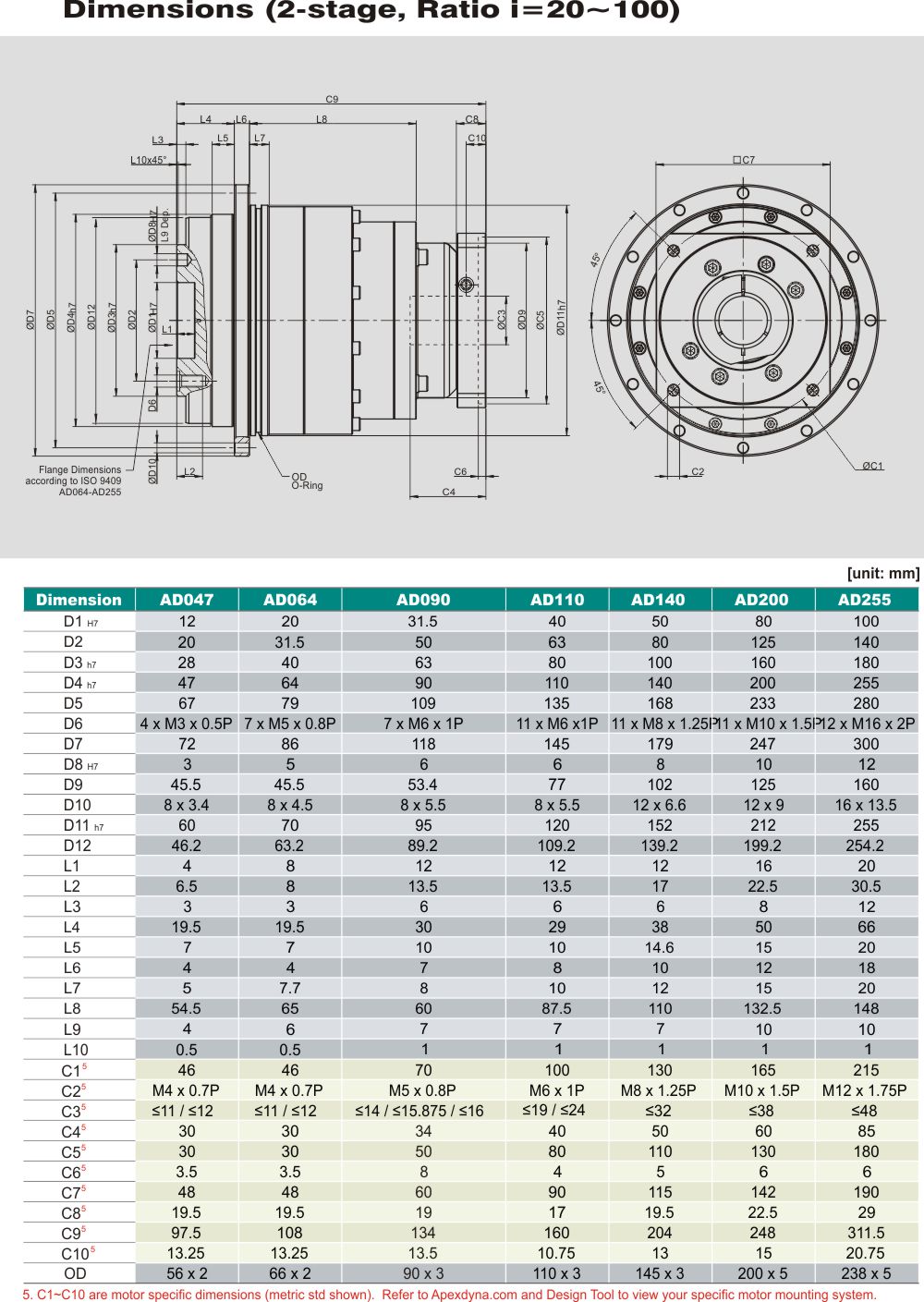

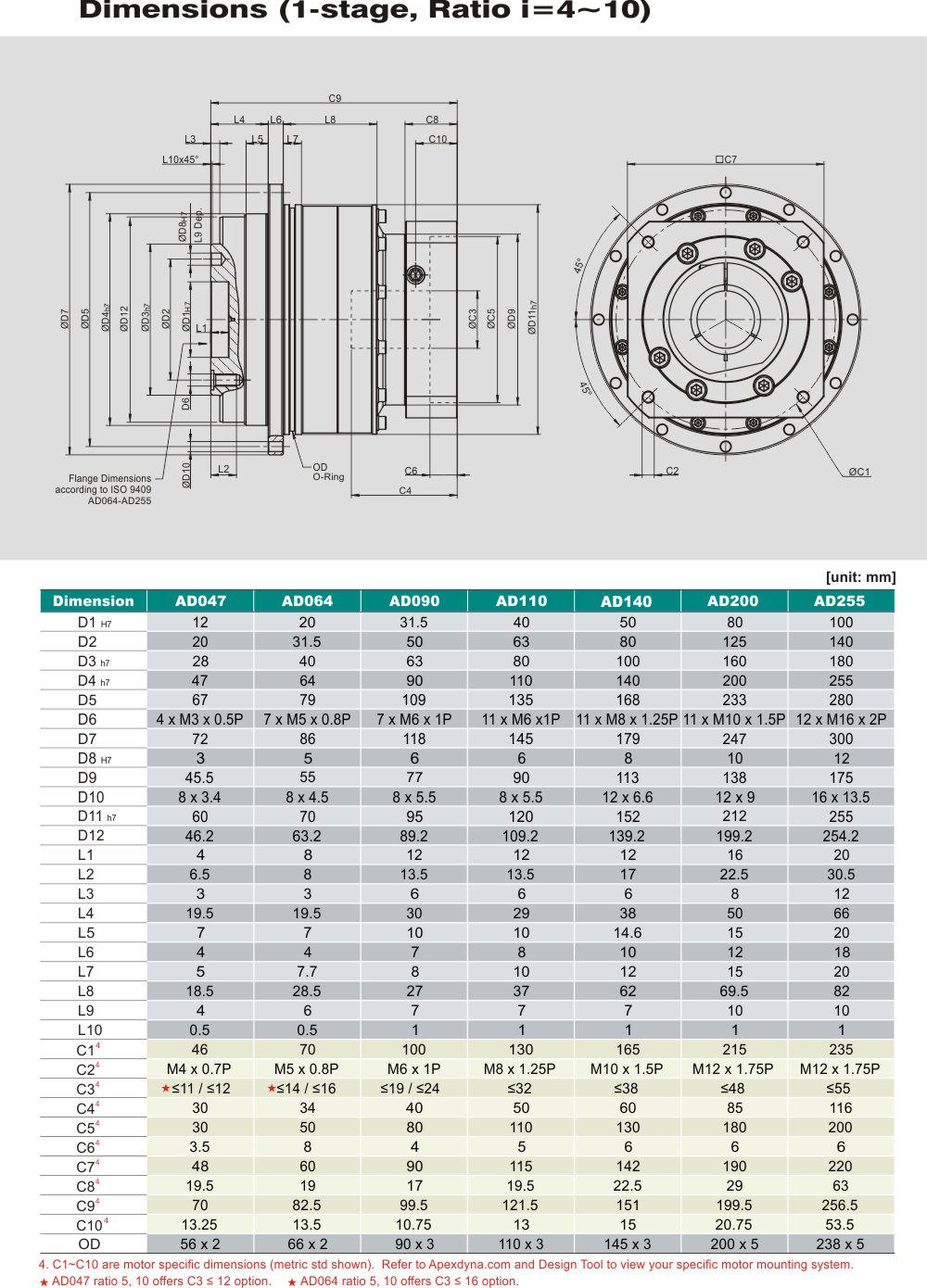

OVERVIEW

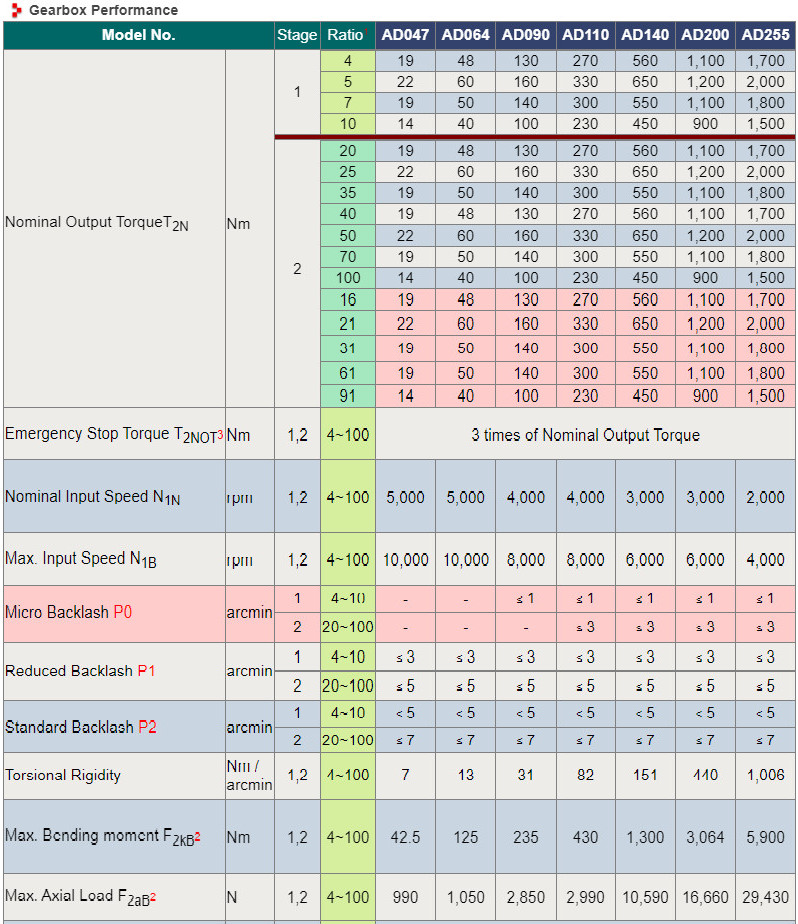

Output torque
T2N : 14 Nm – 2000 Nm
Ratios:
1-stage :4 / 5 / 7 / 10
2-stage :20 / 25 / 35 / 40 / 50 / 70 /
100 / 16 / 21 / 31 / 61 / 91
Low backlash
1-stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
2-stage : ≤3 arcmin / ≤5 arcmin / ≤7 arcmin

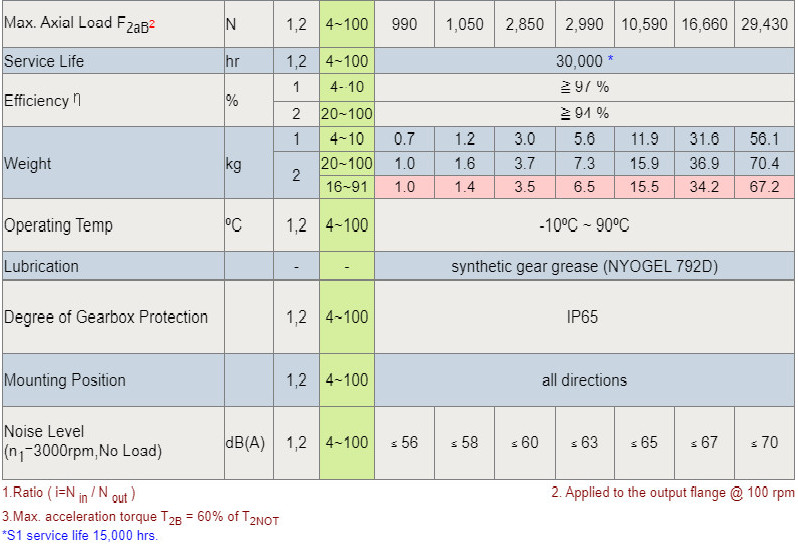

High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure
