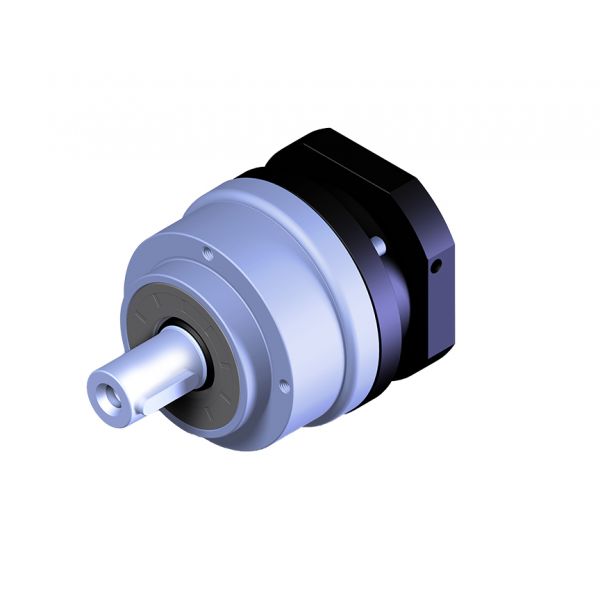

AE-SERIES HIGH PRECISION PLANETARY GEARBOXES

The Apex AE series is unique to the market. Apex is the only Manufacturer that Produces a Cylindrical Helical Stainless Steel Gearbox World Wide. High Precision, High Torque and Quiet Operation are provided by 100% optimized Helical Gearing. Straddle Mounted High Precision Bearings Allow for High Radial and Axial Loads.

OVERVIEW

Output torque
T2N : 14 Nm – 2000 Nm
Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage :15 / 20 / 25 / 30 / 35 / 40 /
45 / 50 / 60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤8 arcmin
2-stage : ≤12 arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure
